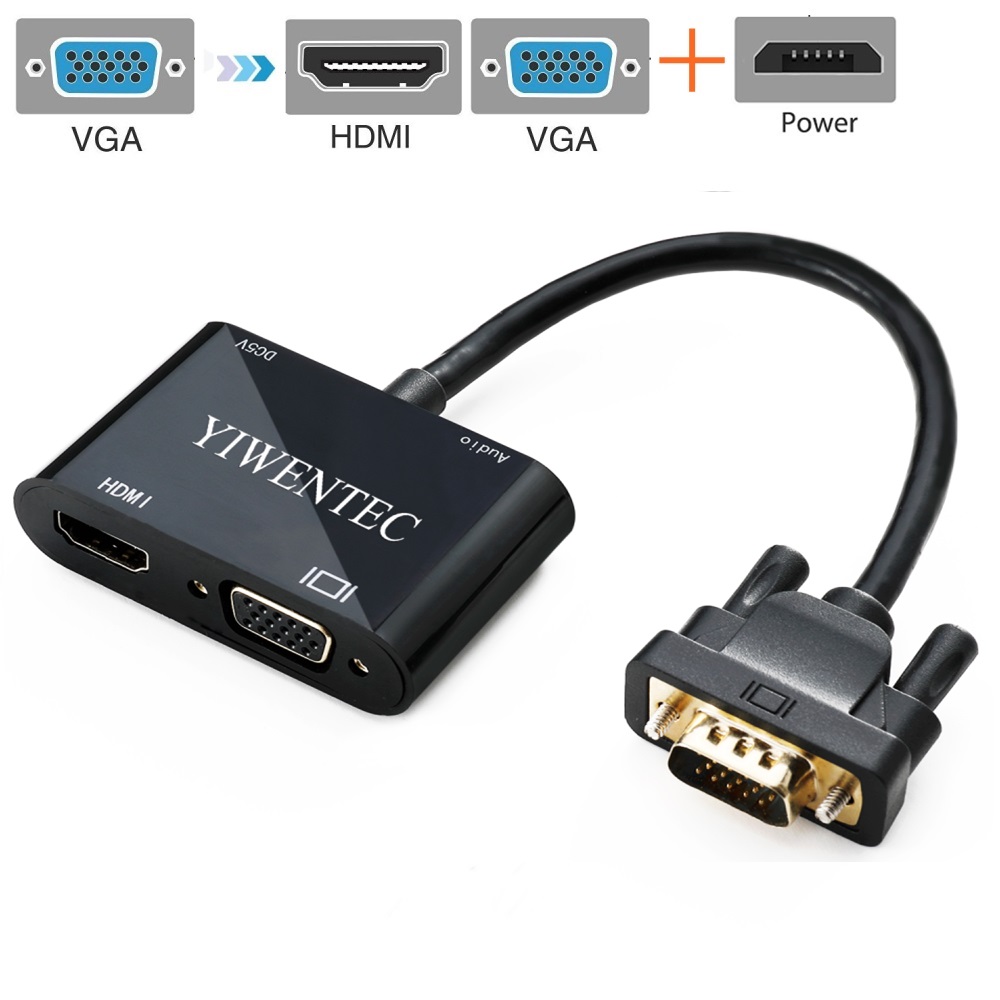

YIWENTEC VGA 15 Pin to VGA HDMI 2IN1 Adapter for Desktop Laptop VGA graphics card with Micro USB Power Cable and Audio 3.5mm D0308

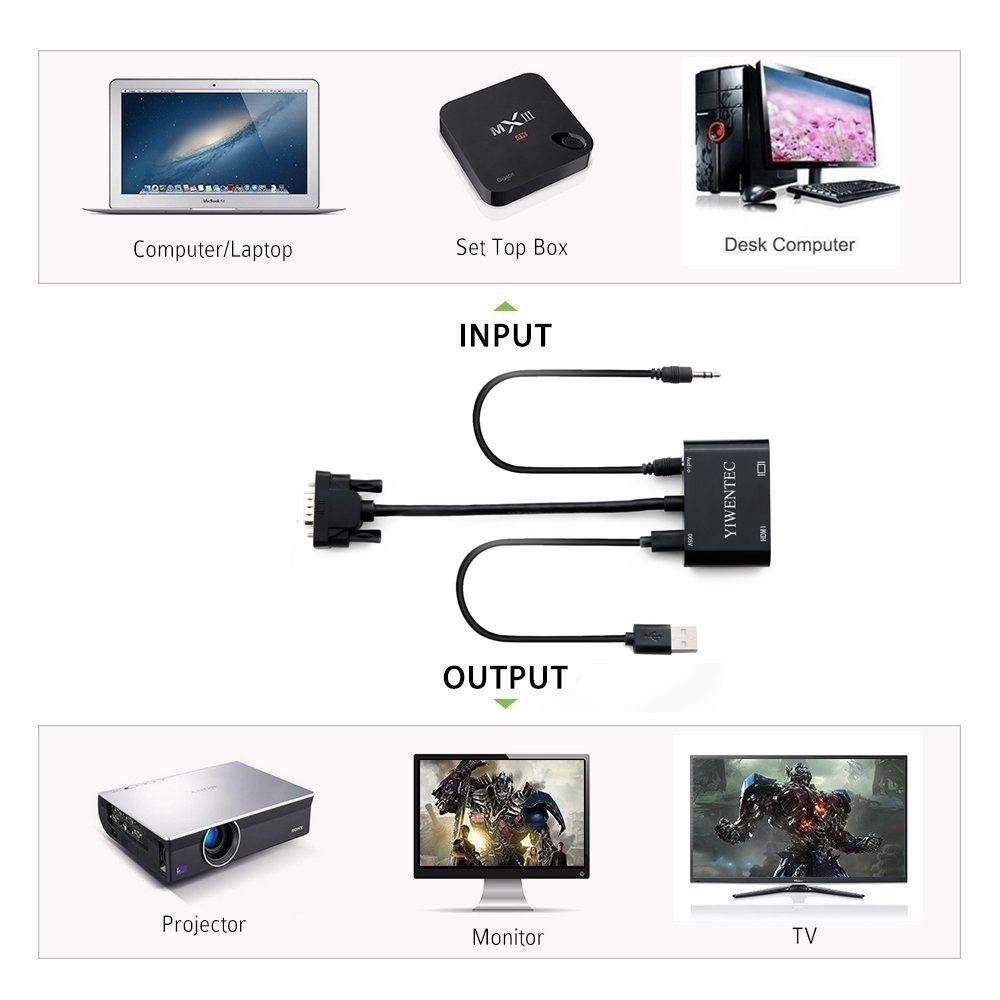

1.0 How to use

1:Connect our VGA Male Port to your VGA 15 Pin Female Desktop/Laptop/ VGA graphics card.

2:Connect a HDMI or VGA standard cable from our Adapter’s HDMI or VGA Female Port to your external displays HDMI or VGA’s Female Port,a separately HDMI or VGA cable is needed,but not included.

3:Connect a Micro USB cable from our Adapter to your USB device to power our Converter when you are using,this is a necessary(must) step,if you do not use Micro USB to power,you can not output video in your external monitors.

4:HDMI and VGA can be connected Simultaneously,but HDMI and VGA displays can only show the same images.

5:For some displays do not detect signal from your input devices automatically,please select your monitor’s signal as HDMI or VGA output by Manual.

6:For Audio Output of This Adapter,please refer to user instruction 2.0 Important Notes when you are using our product”(This is important for you to use our adapter correctly)

2.0 Important Notes when you are using our Product.

1：When you are using our Adapter,please connect micro usb cable to your USB device to power our Adapter.

2:If you would like to transmit 1080p video ,images or other contents from your input device to your external large size screens,please make sure you have HDMI/VGA 1080p Cable,1080p HDMI/VGA Displays,Most important,your input device must support 1080p.

3:Because VGA is a Signal Source can only max output Resolution 1920x1980,so no matter what is your Max Resolution of your HDMI Displays ,HDMI cables,you can only max output 1080p in your external displays.

4:If you connect HDMI and VGA additional displays together,if your HDMI monitor’s resolution is higher than your vga monitor’s resolution,your final output resolution will depend on your relatively lower resolution’s monitors.

5:If you connect VGA input laptops to your HDMI and VGA monitors together,you can choose duplicate and extend mode from your input laptop,in extend mode,you can have different views from your input laptops and your two external displays,but your two displays can only show same views.

6:About Audio Output:

(1) If you connect your input device to your HDMI TVs or Monitors with audio output through HDMI source,please connect an 3.5mm audio cable from your input device’s audio jack to our Adapter’s 3.5mm audio jack port,then your HDTVs will output audio together;

(2) If you connect HDMI individually to your Monitors without audio output,please connect your input device’s audio jack to your external speakers to output sound;

(3) If you connect HDMI and VGA to output video together,please connect audio 3.5mm jack from your input device to your external speakers to get sound；

(4) if you connect VGA individually,please connect from your input devices’ 3.5 mm audio jack to your external speakers to output audio.
